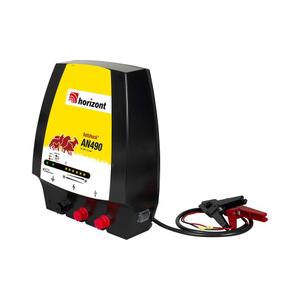

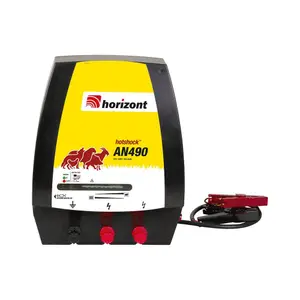

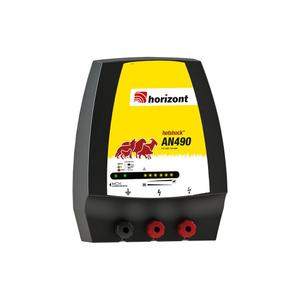

Mixed station Hotshock AN490

An ideal range for crop protection and protection against damage from game and wildlife. Fencing systems that have proved their worth in difficult conditions, such as using nets with vegetation, or against wild boar and wolves. This mixed station operates either on a 230V mains supply or on a 12V battery. A solar panel can also be added for autonomous operation.
Mixed device, 5.9 J input, 4.9 J output.
For fences up to 40 km without vegetation and 10 km with heavy vegetation.
Electrical pulse control light.
Battery control light.
"System Control" fence insulation indicator, showing the insulation status of your fence via 6 LEDs.
On/off switch
3-level LED display "Energy Control" allows you to quickly check battery capacity, and also indicates the activity of the electric fence by flashing according to the pulse output. Thanks to its energy-saving function, the device's power consumption adapts to the fence, guaranteeing a clear reduction in energy consumption.
Deep-discharge protection function to effectively preserve your battery.
High-quality plastic (PC) - UV-stabilized, splash-proof and oil-resistant.
Hanging device for wall mounting
Ventilation slots for condensation water drainage
Works with solar module (optional 50W solar panel)
Included with energizer:
Fence connection cable
Battery connection
Ground connection cable with reinforced plastic sheath
Supplied without transformer for mains supply. To be ordered separately
Technical data:
Stored energy: 5.9 J
Delivered energy: 4.9 J
Maximum fence voltage: 14,000 V
Voltage under 500 Ohms: 6,000 V
Consumption 12V: 110mA-435 mA
Maximum fence distance, EEC standard: 130 km
Distance without vegetation : 45 km
Distance with medium vegetation: 20 km
Distance with heavy vegetation: 10 km
Number of nets: 14*50 m
Recommended number of ground stakes: 5 x 1.5m
Recommended solar panel: 50 W
